8.2 MHz Radio-Frequency

RF Technology

Callidus RF systems add network connectivity, remote management, optional people counting, MQTT and REST API access, adaptive sensitivity, and low-power operation to classic RF loss prevention.

RF Models

8.2 MHz

RF Frequency

182 cm

Max Label Aisle

Key Highlights

What this familyis built for.

Remote tuning and management over the network

Passive antenna options for selected deployments

People counting and alarm validation on selected models

MQTT and REST API access by optional license

Energy-saving modes by traffic, schedule, external key, or magnetic contact

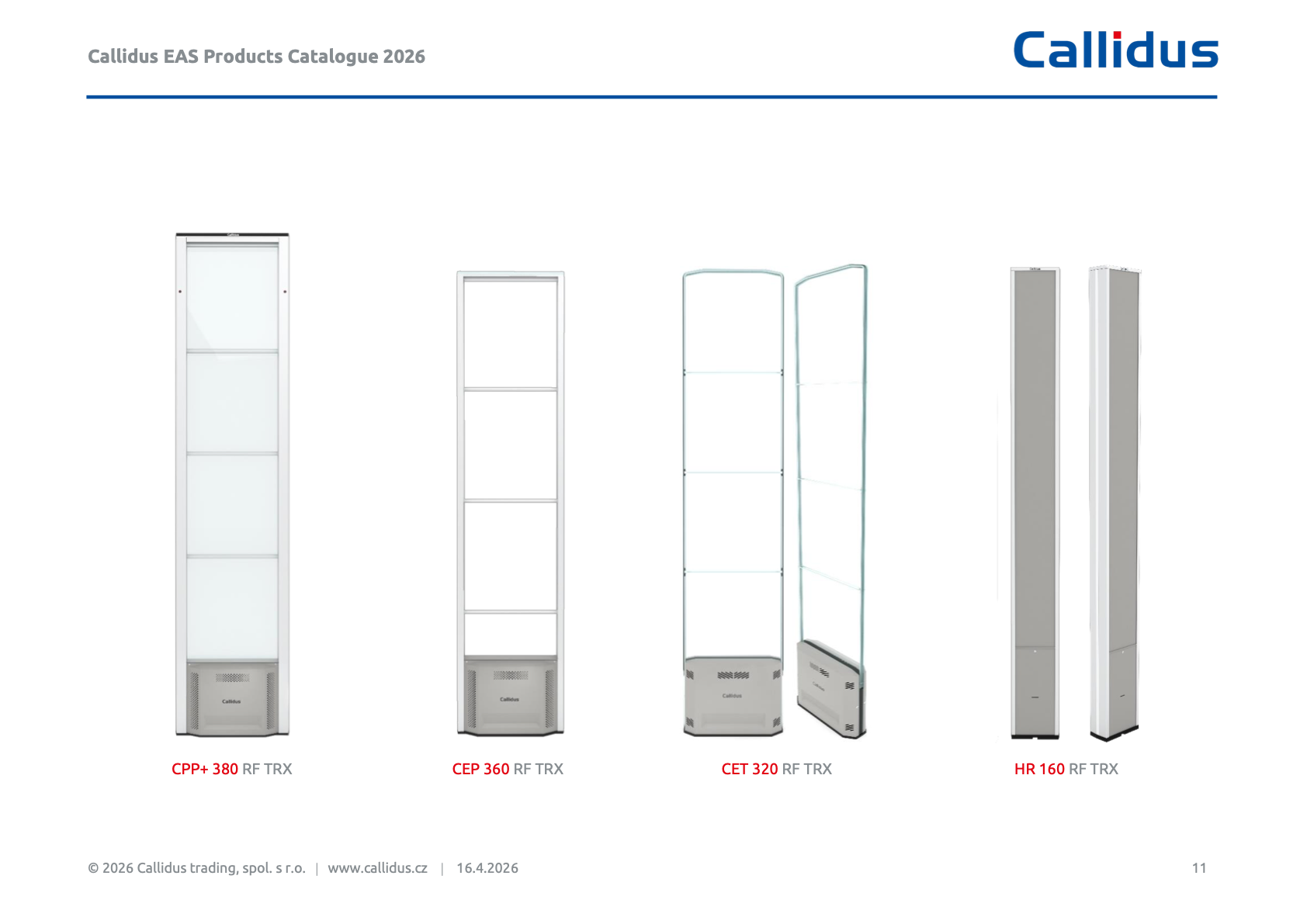

Products

4 catalogue items

Download source PDF

18-51x

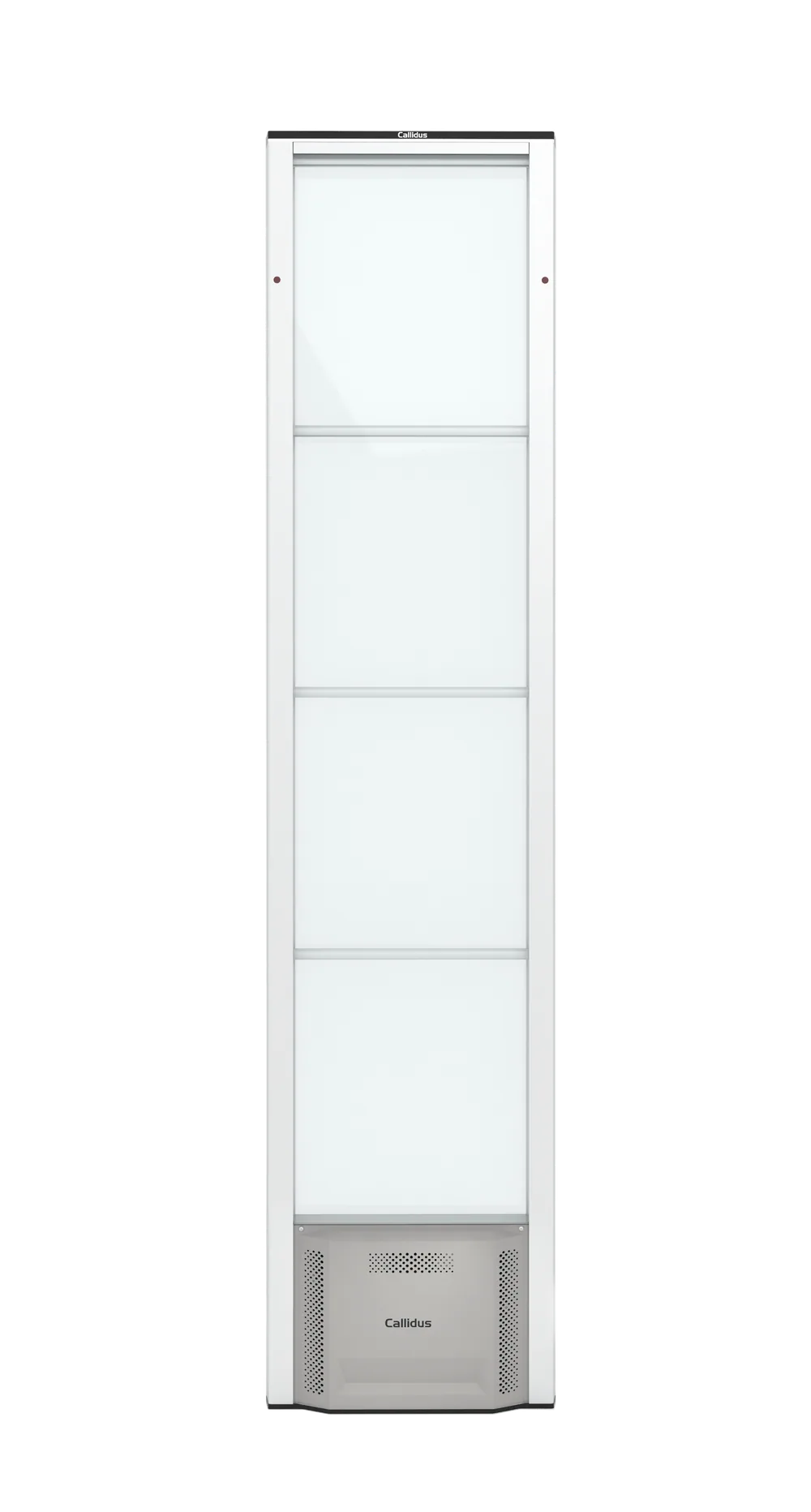

CPP+ 380 RF TRX

Technology: RF technology
Dimensions: 38.2 x 168 x 5.5 cm
Base depth: 9.5 cm
Weight: 10.5 kg
Power: 48VDC/15W per pedestal
Frequency: 8.2 MHz
Detection: Up to 182 cm aisle
Design: Transparent, Solid
Advertising: 1400 x 325 mm
Product code: 18-51x

24-45x

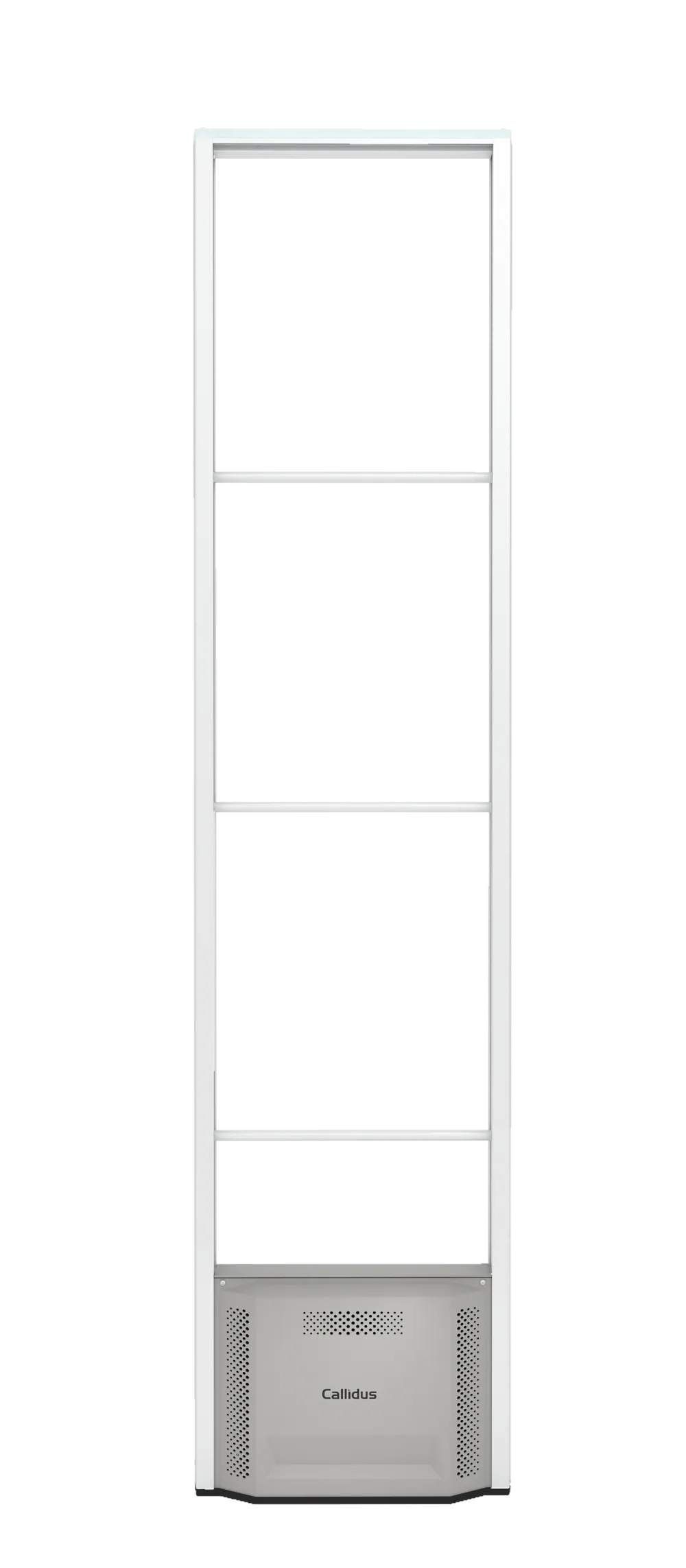

CEP 360 RF TRX

Technology: RF technology
Dimensions: 36 x 152 x 4 cm
Base depth: 8 cm
Weight: 6.35 kg
Power: 48VDC/15W per pedestal
Frequency: 8.2 MHz
Detection: Up to 180 cm aisle
Design: Open, Transparent, Solid
Product code: 24-45x

25-16x

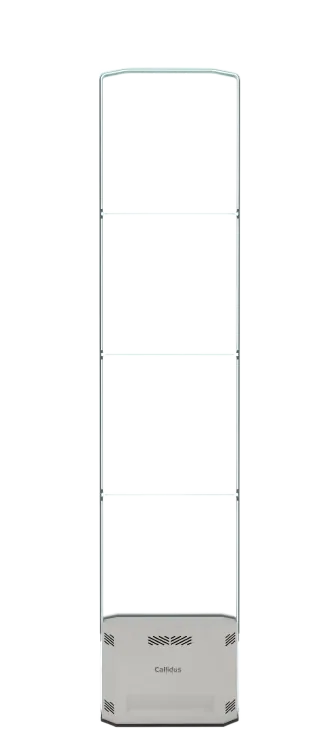

CET 320 RF TRX

Technology: RF technology
Dimensions: 32.5 x 151 x 2 cm
Base depth: 9.6 cm
Weight: 14 kg
Power: 48V DC/15W per pedestal
Frequency: 8.2 MHz
Detection: Up to 180 cm between pedestals
Design: Acrylic
Product code: 25-16x

23-45x

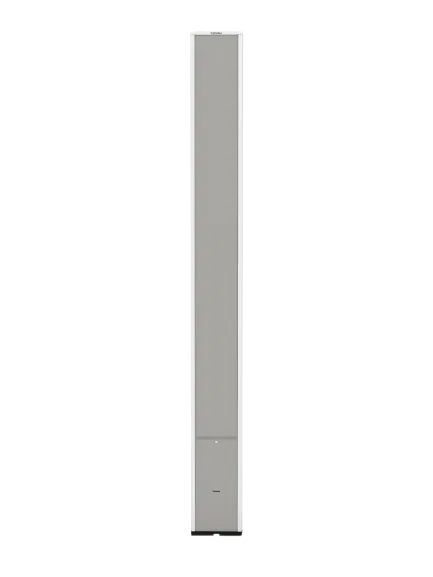

HR 160 RF TRX

Technology: RF technology
Dimensions: 16 x 152 x 8 cm
Weight: 6.35 kg
Power: 48V DC/15W per pedestal
Frequency: 8.2 MHz
Detection: Up to 170 cm aisle
Design: Solid
Advertising: 1209 x 142 mm
Product code: 23-45x

Specification Support

Need the rightconfiguration?

Share your entrance width, tag technology, store category, and interior requirements. Callidus can match the right pedestal, controller, power, and accessory combination.
