17-530.F4

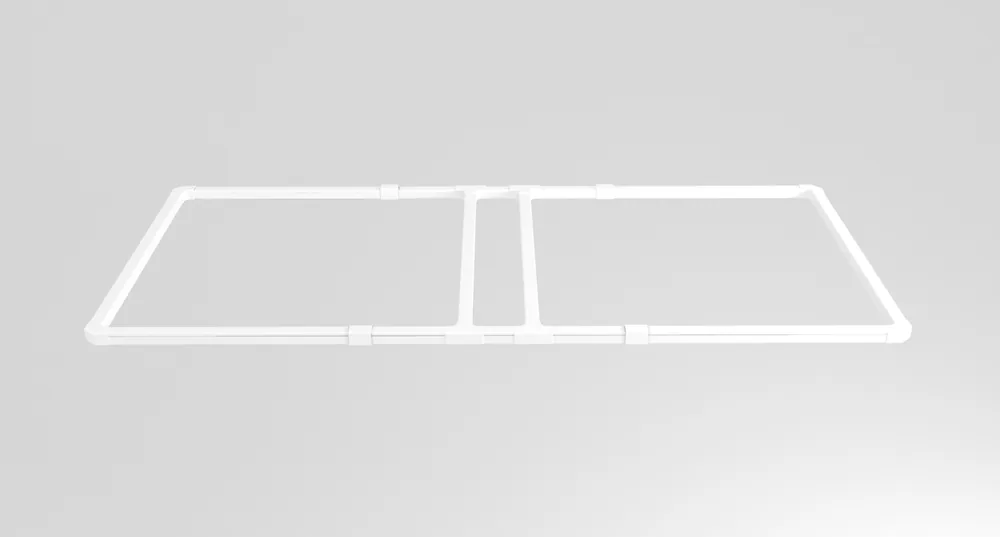

AM 166x74 F4 Concealed Foldable Antenna
- Dimensions
- 170 x 77.5 x 3 cm
- Weight
- 3.8 kg
- Frequency
- AM 58 kHz with AM TRX control box
- Product code
- 17-530.F4
- Notes
- 4 m cable
Back to catalogue
Concealed AM Infrastructure
AM Floor Systems
The floor system portfolio supports slim concealed antennas, single and multi-antenna controllers, and ceiling extenders that increase full-area detection height while retaining remote management and low visual impact.
330 cm
Max Detection Height
4
Max Antennas Per Controller
6
Floor Antenna SKUs
Key Highlights
What this familyis built for.

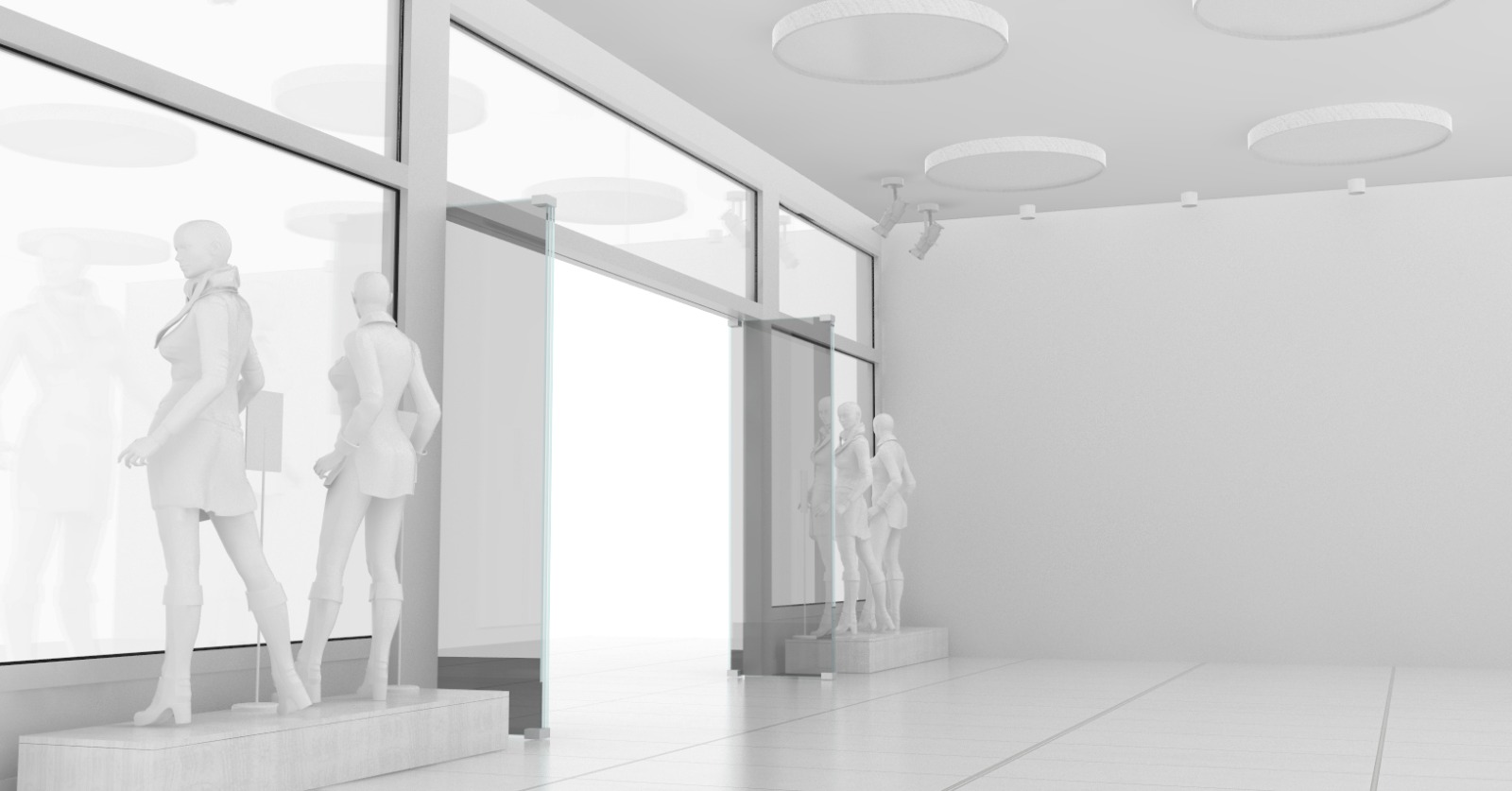

Invisible under-floor installation with no ferrite shielding required
Foldable antennas for easier transport
Controller options for one to four pedestals or floor antennas

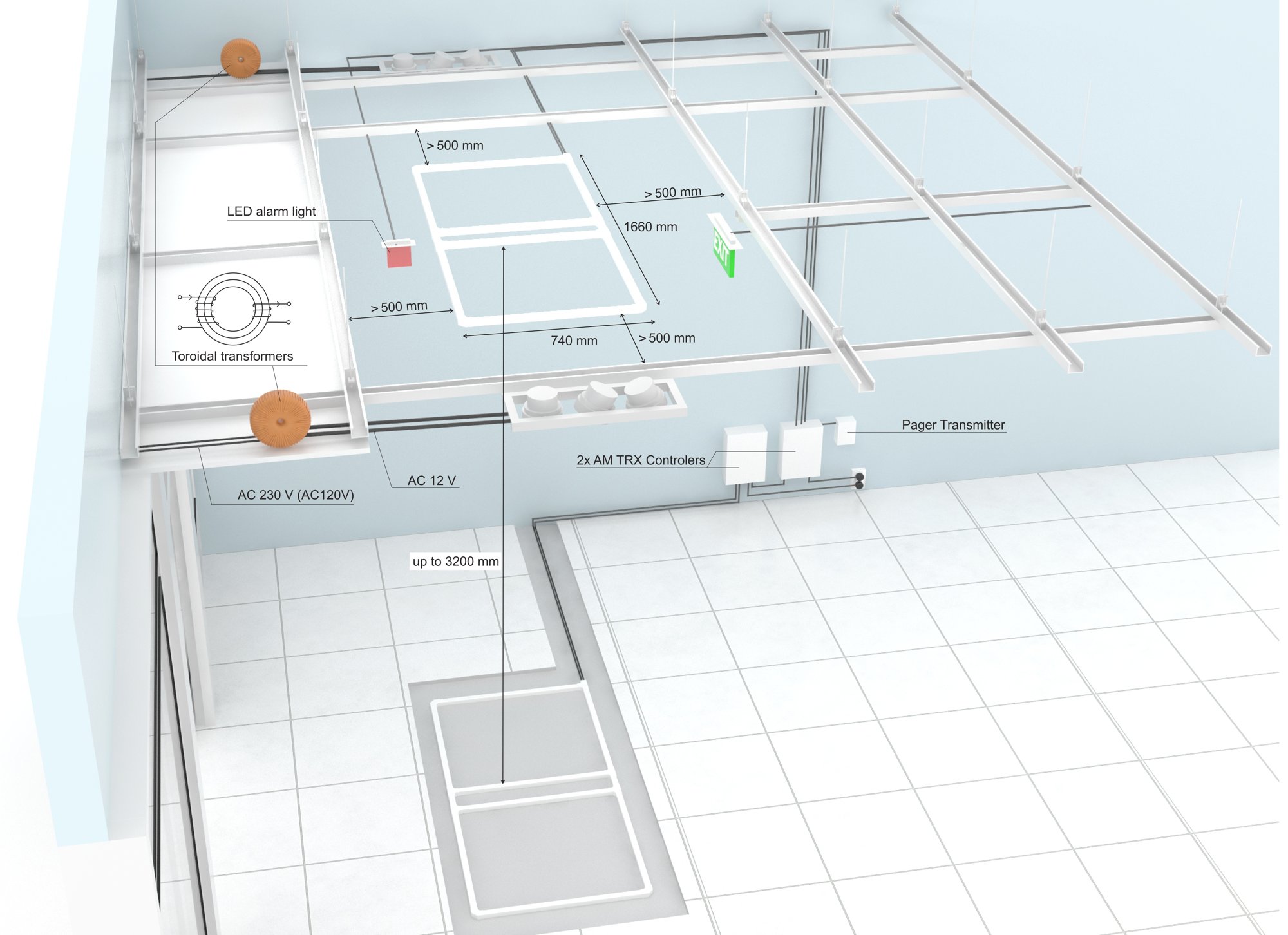

Ceiling extender raises full-area detection height and can include embedded UHF RFID
Remote tuning, MQTT and REST API by license, RGB alarm light, and buzzer support
Products
9 catalogue items
17-535.F4
AM 130x74 F4 Concealed Foldable Antenna
- Dimensions
- 134 x 77.5 x 3 cm
- Weight
- 3.5 kg
- Frequency
- AM 58 kHz with AM TRX control box
- Product code
- 17-535.F4
- Notes
- 4 m cable
17-550.F10
AM 166x74 F10 Concealed Foldable Antenna
- Dimensions
- 170 x 77.5 x 3 cm
- Weight
- 7.4 kg
- Frequency
- AM 58 kHz with AM TRX control box
- Product code
- 17-550.F10
- Notes
- 10 m cable
17-555.F10
AM 130x74 F10 Concealed Foldable Antenna
- Dimensions
- 134 x 77.5 x 3 cm
- Weight
- 6.3 kg
- Frequency
- AM 58 kHz with AM TRX control box
- Product code
- 17-555.F10
- Notes
- 10 m cable
17-550.F15
AM 166x74 F15 Concealed Foldable Antenna
- Dimensions
- 170 x 77.5 x 3 cm
- Weight
- 8.7 kg
- Frequency
- AM 58 kHz with AM TRX control box
- Product code
- 17-550.F15
- Notes
- 15 m cable
17-555.F15
AM 130x74 F15 Concealed Foldable Antenna
- Dimensions
- 134 x 77.5 x 3 cm
- Weight
- 7.5 kg
- Frequency
- AM 58 kHz with AM TRX control box
- Product code
- 17-555.F15
- Notes
- 15 m cable
19-014.x

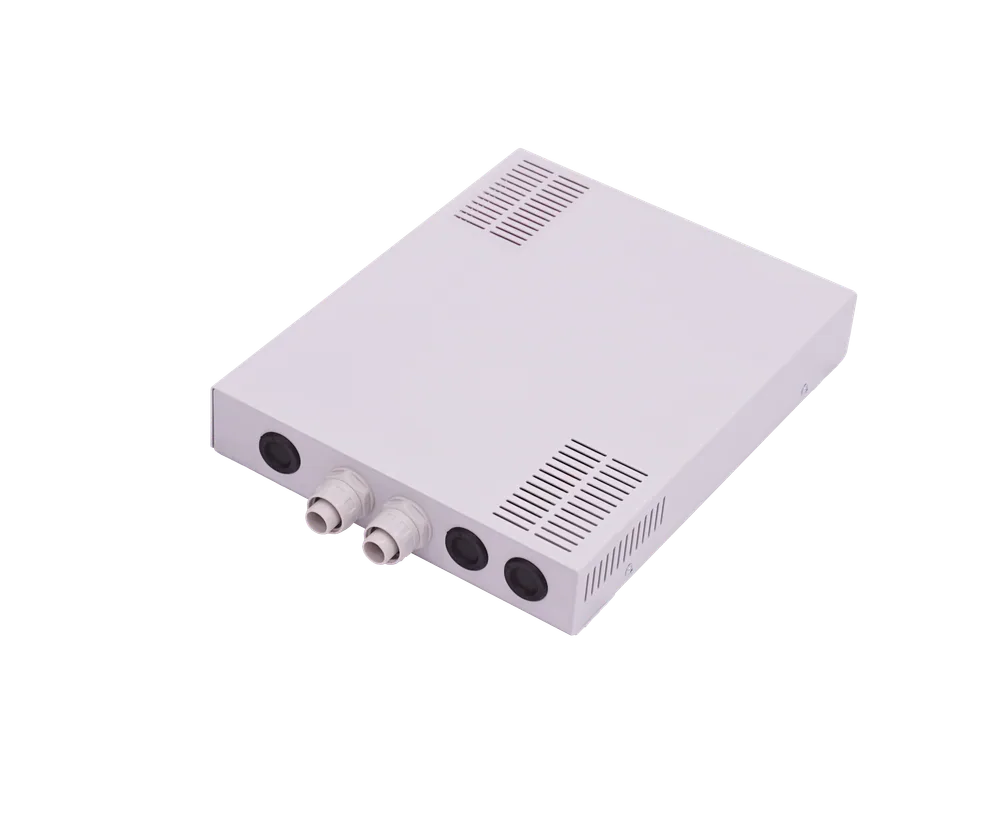

AM TRX Controller
- Dimensions
- 24 x 31 x 4.6 cm
- Weight
- 2.4 kg
- Power
- 100-240V/50-60Hz, 40W max, 5W standby
- Frequency
- 58 kHz
- Product code
- 19-014.x
- Notes
- One control unit can drive one pedestal or floor antenna
19-018.x

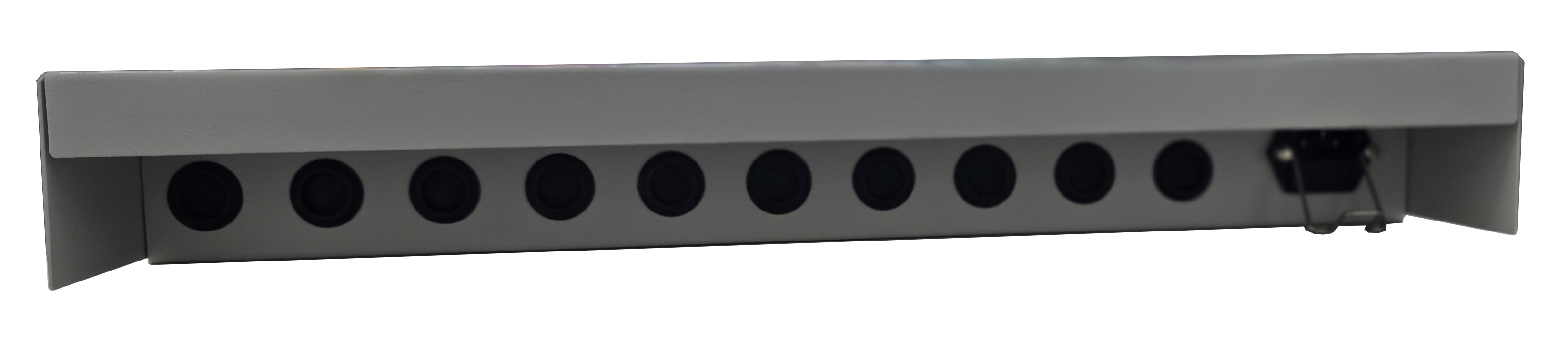

Quad/Trio/Duo AM TRX Controller
- Dimensions
- 48 x 43 x 6.6 cm
- Weight
- 6.1 kg Quad, 5.8 kg Trio, 5.2 kg Duo
- Power
- 100-240V/50-60Hz, Duo 40W max, Trio 80W max, Quad 80W max
- Frequency
- 58 kHz
- Product code
- 19-018.x
- Notes
- Drives up to four pedestals or floor antennas
20-101.MWC

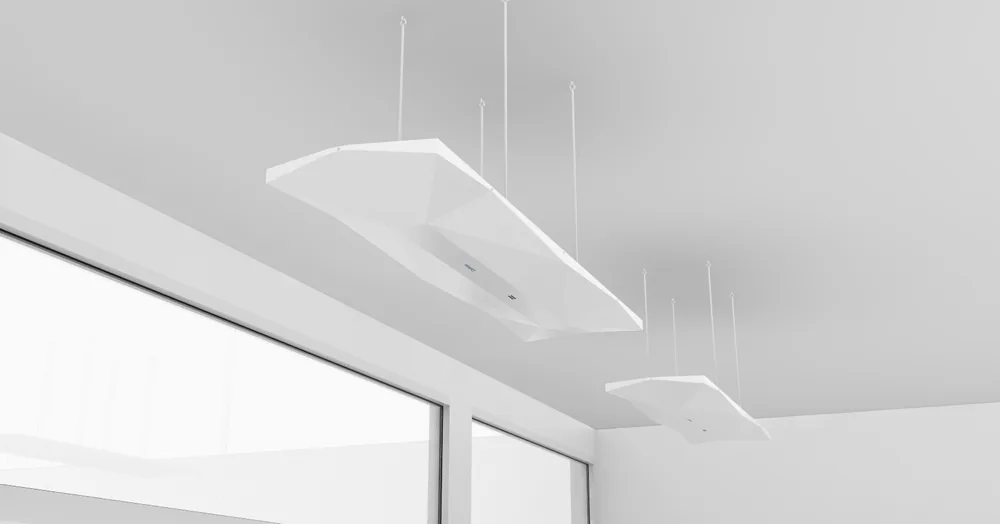

Callidus AM TRX Ceiling Extender
- Dimensions
- 133 x 32 x 6.5 cm
- Weight
- 5.7 kg
- Power
- 115V/60Hz or 230V/50Hz, 35W max
- Frequency
- 58 kHz
- Detection
- Up to 180 cm aisle
- Color
- Matt white standard, silver or black available
- Product code
- 20-101.MWC
Specification Support
Need the rightconfiguration?
Share your entrance width, tag technology, store category, and interior requirements. Callidus can match the right pedestal, controller, power, and accessory combination.
