58 kHz Acousto-Magnetic

AM Technology

Callidus AM systems combine remote management, adaptive sensitivity, jamming detection, alarm validation, energy-saving modes, and optional foil-bag or magnet detection across aluminum, acrylic, advertising, door-frame, and compact pedestal designs.

Pedestal Models

58 kHz

AM Frequency

270 cm

Max Label Aisle

Key Highlights

What this familyis built for.

Network connection with remote tuning and management

Buzzer and RGB alarm lights

Adaptive sensitivity, tag-too-close alerts, and built-in jamming detection

Optional people counting, alarm validation, MQTT, REST API, foil-bag detection, and magnet detection

Dashboard-ready alarm event management and advertising poster options on CPP+ systems

Products

7 catalogue items

Download source PDF

18-50x

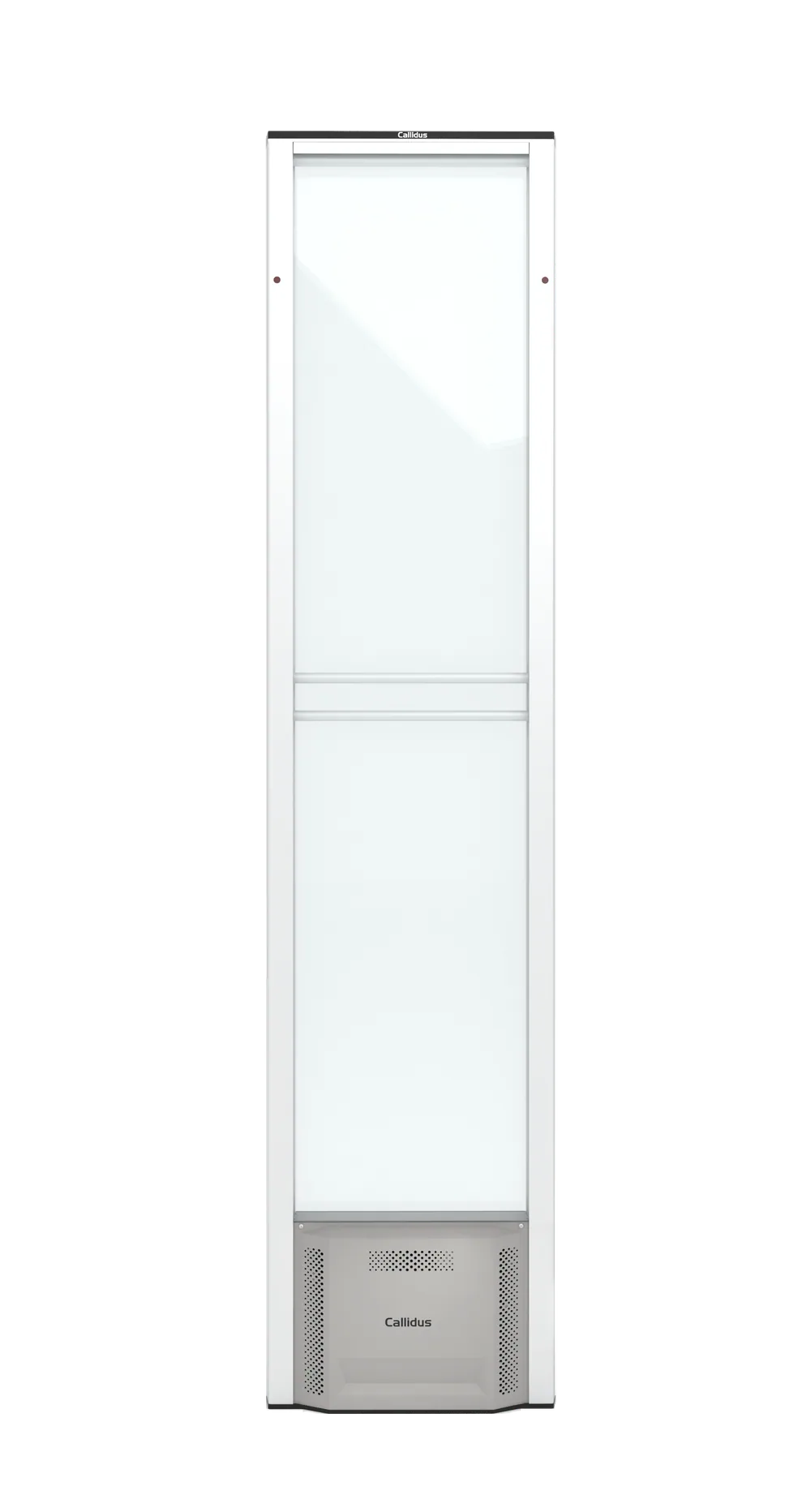

CPP 380 AM TRX

Technology: Superior AM technology
Dimensions: 38.2 x 168 x 5.5 cm
Base depth: 9.5 cm
Weight: 8.5 kg
Power: 115V/60Hz or 230V/50Hz, 40W max, 5W standby
Frequency: 58 kHz
Detection: Up to 244 cm aisle
Design: Transparent, Solid, LGP
Advertising: 1400 x 325 mm
Product code: 18-50x

18-571.x

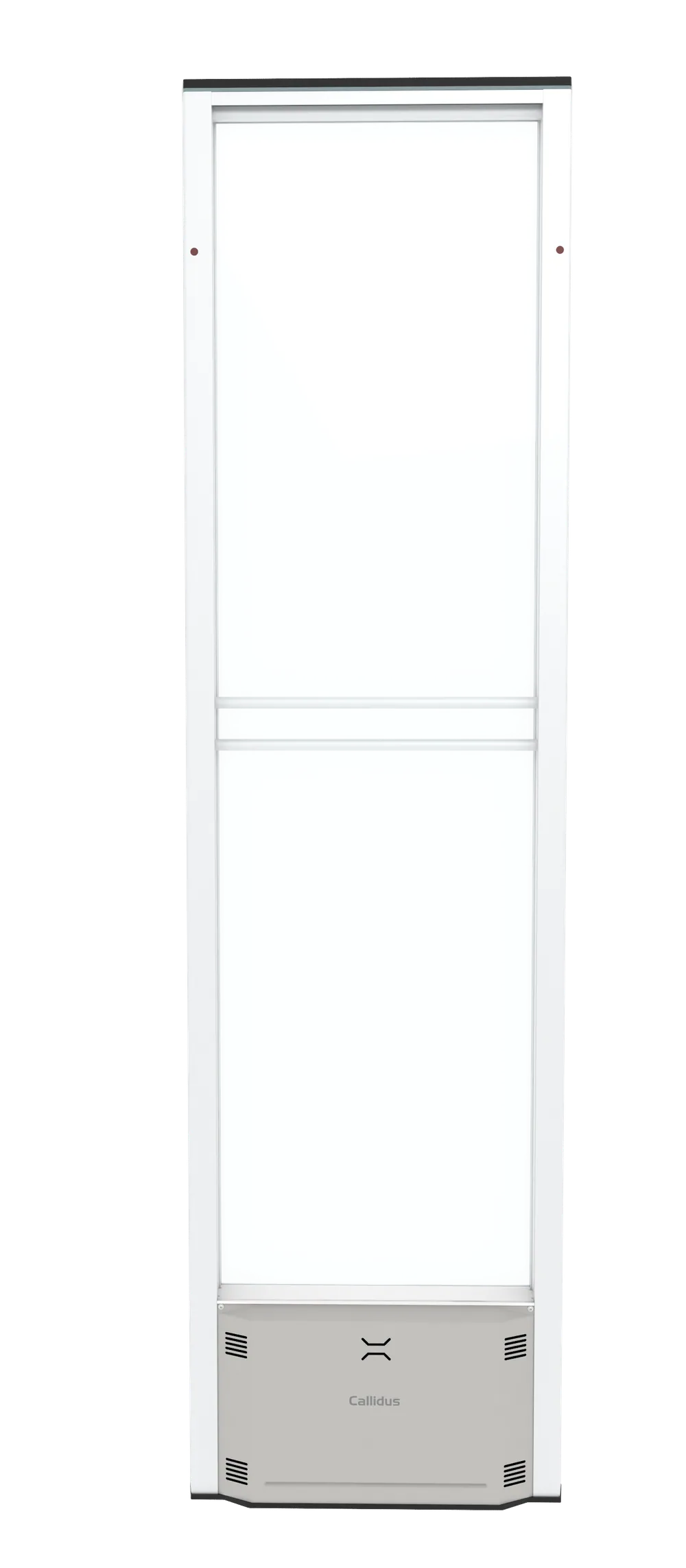

CPP 450 AM TRX

Technology: Superior AM technology
Dimensions: 45.4 x 168 x 5.5 cm
Base depth: 9.5 cm
Weight: 12.5 kg
Power: 115V/60Hz or 230V/50Hz, 40W max, 5W standby
Frequency: 58 kHz
Detection: Up to 270 cm aisle
Design: Transparent, Solid
Advertising: 1400 x 395 mm
Product code: 18-571.x

21-155.x

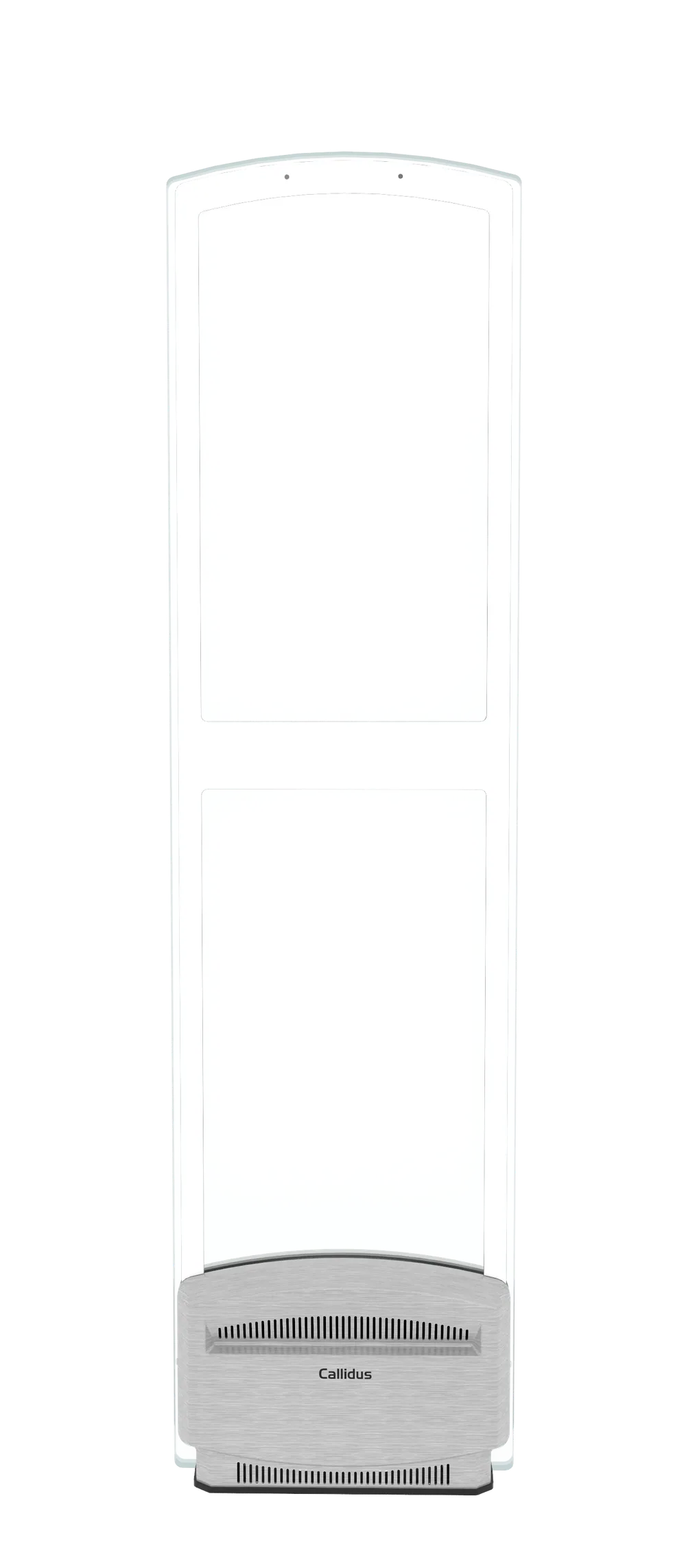

CT 400 AM TRX

Technology: Superior AM technology
Dimensions: 40 x 150.7 x 2 cm
Base depth: 10.4 cm
Weight: 14 kg
Power: 115V/60Hz or 230V/50Hz, 40W max, 5W standby
Frequency: 58 kHz
Detection: Up to 244 cm aisle
Design: Acrylic
Product code: 21-155.x

23-42x

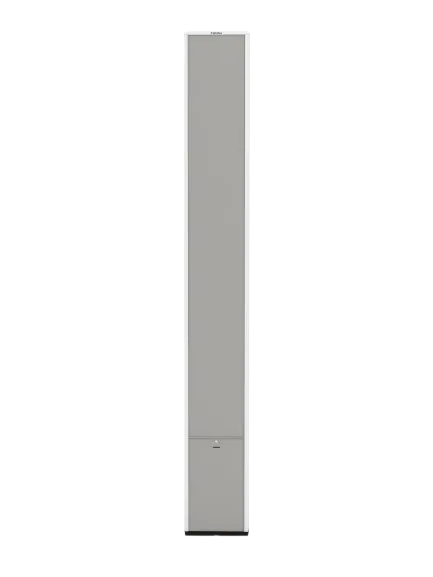

HR 200 AM TRX

Technology: Superior AM technology
Dimensions: 20 x 152.5 x 8 cm
Weight: 8.4 kg
Power: 115V/60Hz or 230V/50Hz, 40W max, 5W standby
Frequency: 58 kHz
Detection: Up to 180 cm aisle
Design: Solid
Advertising: 1209 x 180 mm
Product code: 23-42x

24-40x

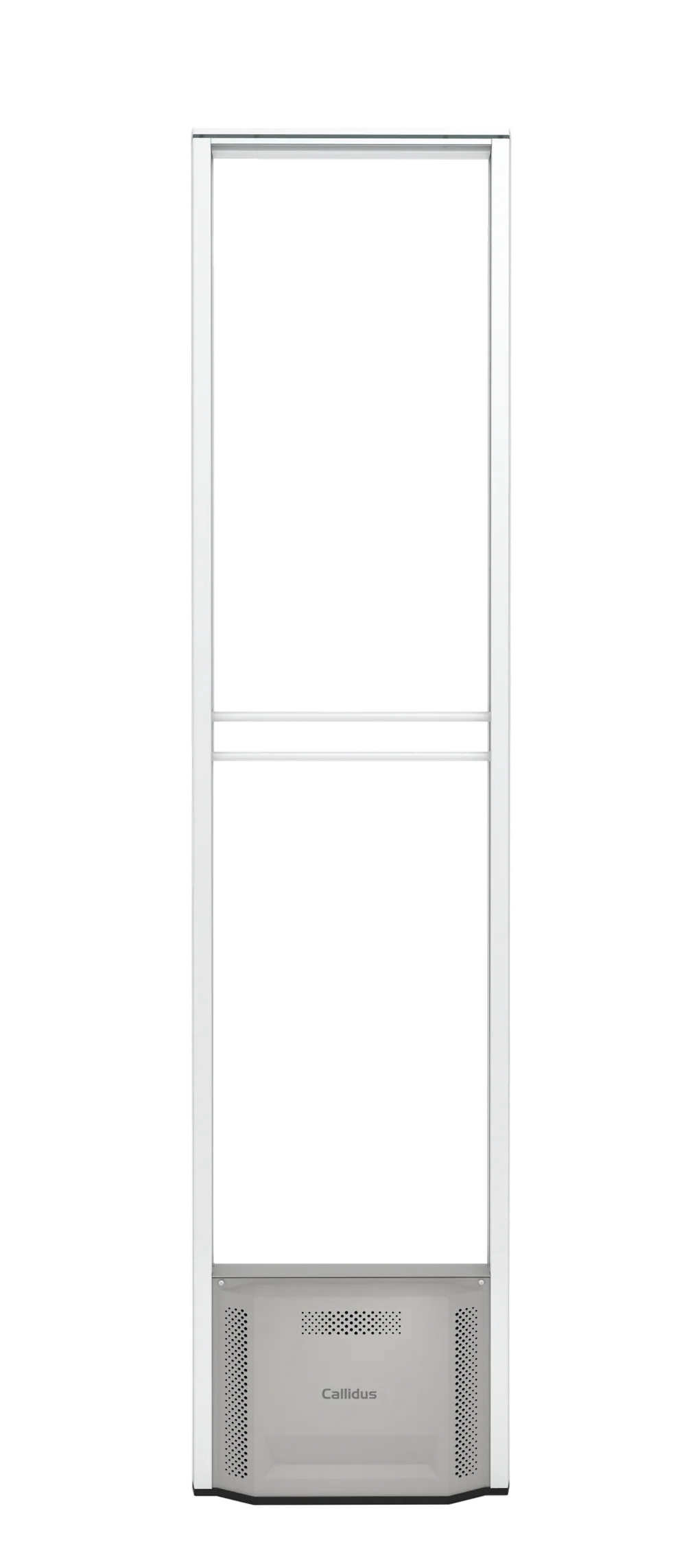

CEP 360 AM TRX Eco

Technology: Economical AM technology
Dimensions: 36 x 152 x 4 cm
Base depth: 8 cm
Weight: 5.7 kg
Power: 115V/60Hz or 230V/50Hz, 18W std., 40W max, 5W standby
Frequency: 58 kHz
Detection: Up to 200 cm aisle
Design: Open, Transparent, Solid
Product code: 24-40x

25-15x

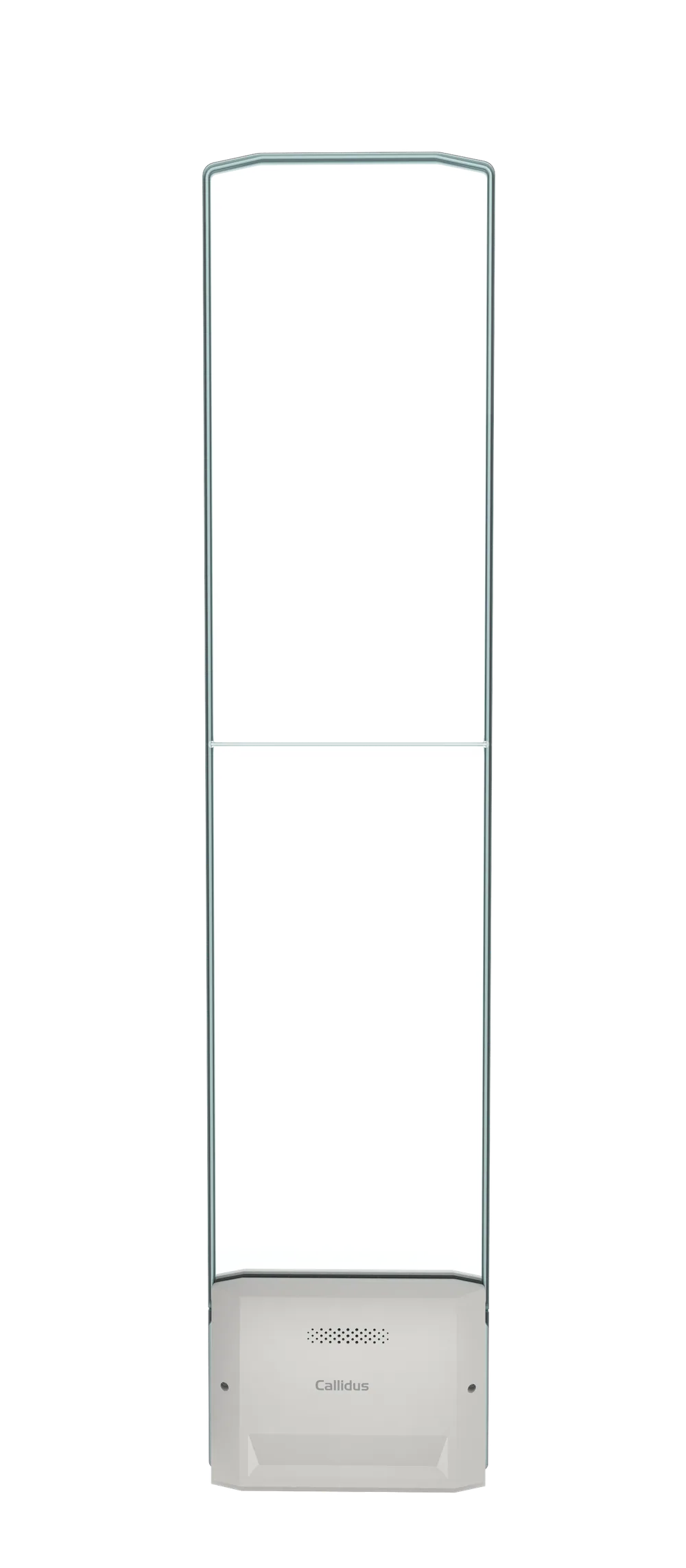

CET 320 AM TRX Eco

Technology: Economical AM technology
Dimensions: 32.5 x 151 x 2 cm
Base depth: 9.6 cm
Weight: 13 kg
Power: 115V/60Hz or 230V/50Hz, 18W std., 40W max, 5W standby
Frequency: 58 kHz
Detection: Up to 190 cm aisle
Design: Acrylic
Product code: 25-15x

24-20x

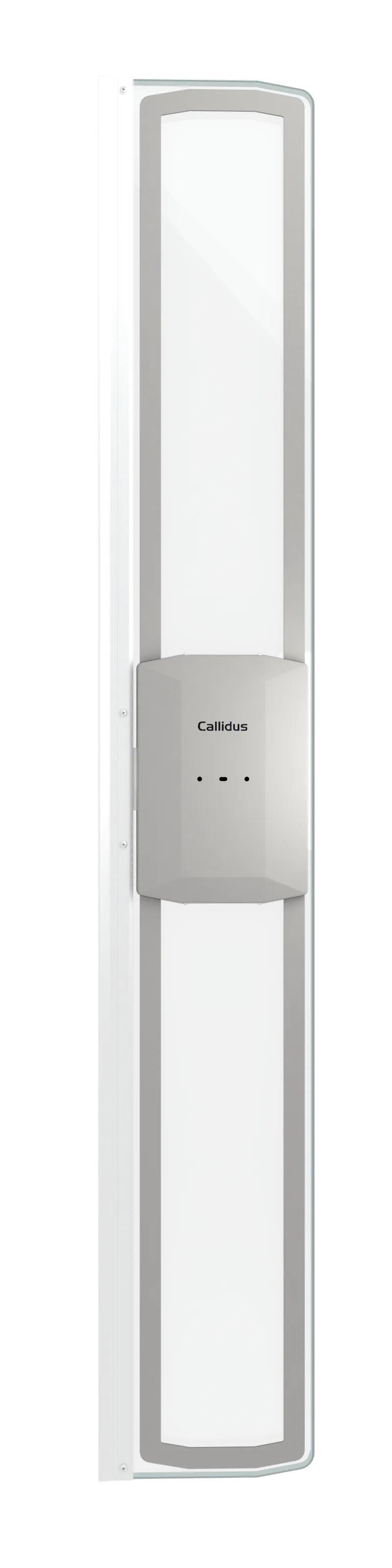

Door 250 AM TRX

Technology: Door frame AM technology
Dimensions: 26.3 x 170 x 2 cm
Base depth: 6.2 cm
Power: 115V/60Hz or 230V/50Hz, 40W max, 5W standby
Frequency: 58 kHz
Detection: Up to 220 cm aisle
Design: Acrylic
Product code: 24-20x

Specification Support

Need the rightconfiguration?

Share your entrance width, tag technology, store category, and interior requirements. Callidus can match the right pedestal, controller, power, and accessory combination.
